“Poor Man’s” Plasma Cutting Table

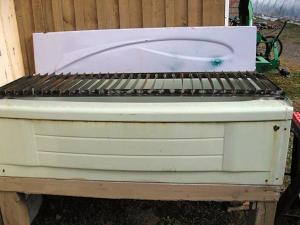

The cost of an expensive plasma table prompted Michael Merrigan of Hampton, Nova Scotia, to build his own out of a bathtub and some old bandsaw blades. The bathtub is screwed onto a 4-legged wooden stand with wheels at one end so he can easily move it around.
“I built it for almost nothing. Commercial plasma
.......... You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book

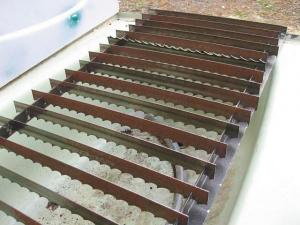

“Poor Man’s” Plasma Cutting Table FARM SHOP Welders/Torches 64 The cost of an expensive plasma table prompted Michael Merrigan of Hampton Nova Scotia to build his own out of a bathtub and some old bandsaw blades The bathtub is screwed onto a 4-legged wooden stand with wheels at one end so he can easily move it around “I built it for almost nothing Commercial plasma tables sell for $500 or more ” says Merrigan “Those tables come with a slotted angle iron frame and have expandable 1/8-in by 1-in flat bar pieces spaced 2 in apart that serve as the work surface I added the tub an idea that’s used on CNC plasma tables as a spark catcher ” He started with a 5-ft long 32-in wide tub He cut up a 1-in angle iron bed frame and welded it together at the corners to make a frame which friction fits to the top of the bathtub He used a 14-in abrasive chopsaw to cut a series of 3/16-in wide 1/2-in deep slots into the frame spacing them 2 in apart Then he cut up an old bandsaw blade into 18-in lengths and inserted them - cutting edges down into the slots to form the table’s working surface “It works as good as I hoped it would ” says Merrigan “The stand sets on 4 by 4 wood legs and places the bathtub at a comfortable 32-in working height Water in the tub catches the sparks from my cutting torch so I don’t have to worry about anything catching on fire “I already had all the materials so my only cost was a couple hours of my time The blades came off my bandsaw mill ” Contact: FARM SHOW Followup Michael Merrigan 8140 Shore Rd West Hampton Nova Scotia Canada B0S 1L0 ph 902 665-2098; raspberry@eastlink ca
